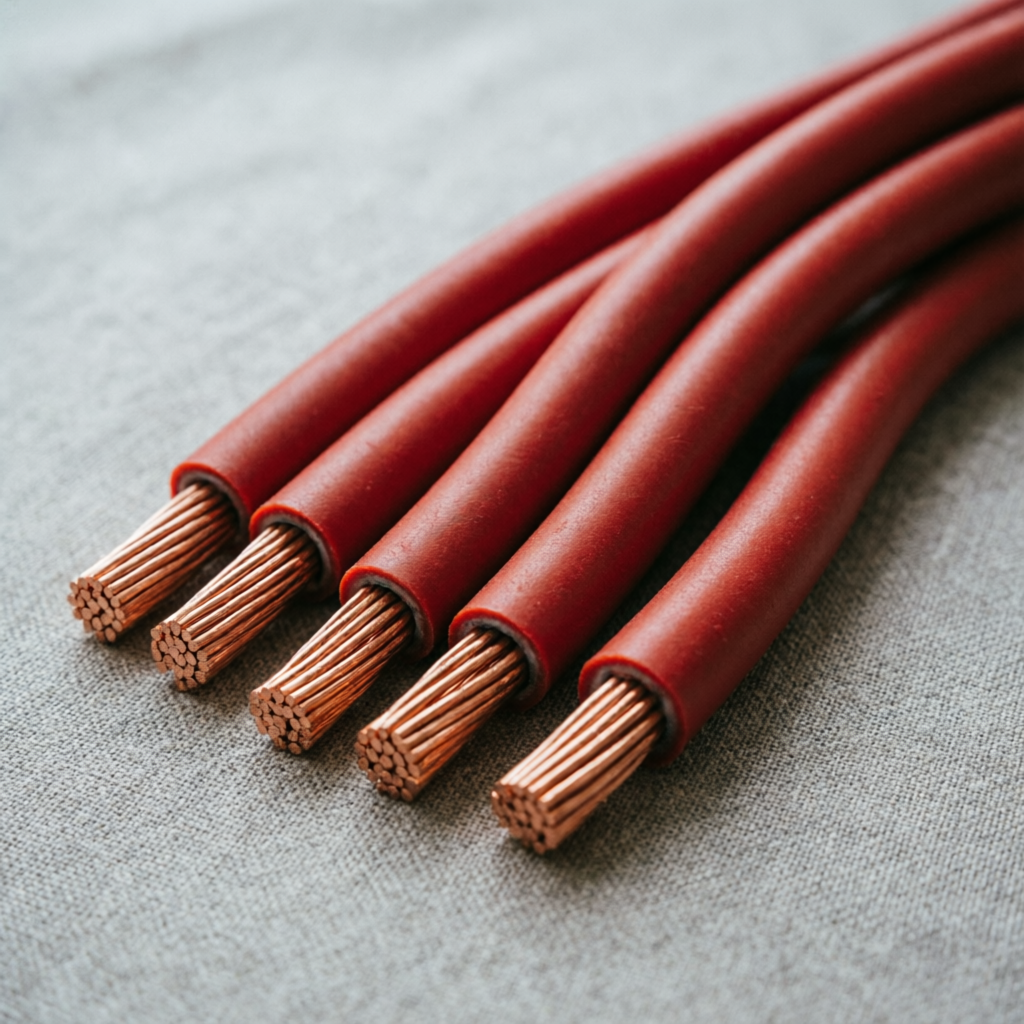

Fire Resistant Cables

High-quality Fire Resistant Cables sourced from certified global manufacturers. Designed for reliable performance in industrial, utility, and commercial applications.

Voltage/Rating

120 - 180 min

Compliance

IEC 60331

Request Quote Download Catalogue

ISO Certified

Global Delivery

Direct Supply

Engineering Data

Electrical Parameters
Rated Voltage	120 - 180 min
Conductor Class	Class 1 / Class 2 (IEC 60228)
Max Conductor Temp	90°C (Normal) / 250°C (Short Circuit)
Standard Compliance	IEC 60331

Physical Characteristics
Insulation Material	XLPE / PVC / LSZH
Core Configuration	300/500V - 1kV
Flame Retardancy	IEC 60332-1
Min Bending Radius	12-15x Overall Diameter

Cable Structure

1Conductor: Stranded Copper or Aluminum to IEC 60228 class 1 or 2.
2Insulation: Cross-linked polyethylene (XLPE) or high-grade PVC.
3Inner Covering: Extruded PVC or polypropylene yarns.
4Armouring: Single layer of galvanized steel wires (SWA) or tape.
5Outer Sheath: Extruded PVC (ST2), LSZH, or PE material.

Size Specifications

Nominal Area (mm²)	Core Count	Approx. OD (mm)	Approx. Weight (kg/km)	Current Rating (Air/Amps)
35	1 - 4	18.5 - 35.2	540 - 2150	160 - 210
70	1 - 4	22.1 - 42.8	980 - 3650	245 - 310
120	1 - 4	28.5 - 52.4	1450 - 5400	340 - 450
240	1 - 4	35.2 - 68.5	2650 - 9800	520 - 680

Industrial Applications

Industrial Power

Reliable power distribution for manufacturing facilities.

Utility Networks

High-performance cables for electrical utility distribution.

Commercial Projects

Certified electrical solutions for large-scale commercial buildings.

Certification & Quality

IEC / BS / ASTM

Full compliance with international electrical standards for conductor design and insulation integrity.

ISO 9001 Quality Control

Strict manufacturing protocols and routine testing for partial discharge, voltage, and tensile strength.

Inquire About Electrical Solutions

Our electrical engineering team specializes in large-scale utility, renewable energy, and industrial cable requirements. Contact us for technical support and volume pricing.
